  • NOSHOK 45-640-300-psi 1/4" NPT, 0 to 300 PSI, Brass Bottom Connection, 4-1/2" White Aluminum Dial, Black Phenolic Case, Single Scale, Differential, Pressure Gauge

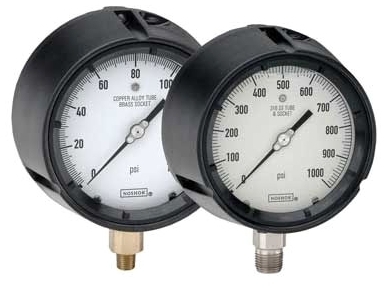

Picture of NOSHOK 45-640-300-psi 1/4" NPT, 0 to 300 PSI, Brass Bottom Connection, 4-1/2" White Aluminum Dial, Black Phenolic Case, Single Scale, Differential, Pressure Gauge
IMPORTANT NOTE: This image (above) may or may not be the exact product image. It's used for illustration only. Please refer to the technical description and MPN for the exact product details. Contact us if you have ANY questions.
NISCO, Inc.

NOSHOK 45-640-300-psi 1/4" NPT, 0 to 300 PSI, Brass Bottom Connection, 4-1/2" White Aluminum Dial, Black Phenolic Case, Single Scale, Differential, Pressure Gauge

MPN: 45-640-300-psi
List Price: $240.58
$132.60
Download Product Spec Sheet
Print this Page
Buying in Bulk?
Buying in Bulk?

Are you interested in buying this product in bulk? If so, please call our sales team and see if you qualify for a special bulk pricing discount.

REPLACEME
Need help?
Need help?

Are you unsure about which product you need to get the job done? If so, one of our friendly customer support representatives would be happy to help.

Please call us at REPLACEME2 and speak to an expert today.

Pressure Gauge | Pressure Gauge Type Differential | Minimum Pressure 0 PSI | Maximum Pressure 300 PSI | Display Type Dial | Enclosure Material Black Phenolic | End Connection 1/4 Inch Threaded | Connection Location Bottom | Sensor Element Copper Alloy C-Type Bourdon Tube | Dial Diameter 4-1/2 Inch | Dial Material Aluminum | Dial Color White Background with Black Scale | Pointer Type Balanced, Micro-Adjustable | Pointer Material Aluminum | Pointer Color Black | Filler Material None | Temperature Rating -40 to 150 Deg F | Full Scale Accuracy +/-0.5 Percent | Application Chemical Petroleum and Petrochemical Refinery, Utilities, Food Processing Plant, Paper Mill, Power Generating Station, Water Treatment Plant, Wherever Accuracy, Safety, Readability and Reliability are Crucial | Scale Single | Size 5.83 Inch Diameter x 3.39 Inch Width | Lens Material Acrylic | End Connection Material Brass

Manufacturer Catalog Page

Manufacturer Specification Sheet

Manufacturer Installation Instructions

Product Features / Technical Specifications
Connection Location Bottom
Additional Information Scale Single | Size 5.83 Inch Diameter x 3.39 Inch Width | Lens Material Acrylic | End Connection Material Brass
Application Chemical Petroleum and Petrochemical Refinery, Utilities, Food Processing Plant, Paper Mill, Power Generating Station, Water Treatment Plant, Wherever Accuracy, Safety, Readability and Reliability are Crucial
Dial Color White Background with Black Scale
Dial Diameter 4-1/2 Inch
Dial Material Aluminum
Display Type Dial
Enclosure Material Black Phenolic
End Connection 1/4 Inch Threaded
Features & Benefits Turret Style Dry or Liquid Filled Gauge | Turret Style Cases are Constructed of a Rugged, Corrosion Resistant Phenolic Material | Solid Front, Safety Case with a Blow-Out Black Isolates the Gauge Face from the Pressure | Adjustable Pointer | Standard Lens
Filler Material None
Full Scale Accuracy +/-0.5 Percent
Maximum Pressure 300 PSI
Minimum Pressure 0 PSI
Pointer Color Black
Pointer Material Aluminum
Pointer Type Balanced, Micro-Adjustable
Pressure Gauge Type Differential
Sensor Element Copper Alloy C-Type Bourdon Tube
Series/Model 600
Temperature Rating -40 to 150 Deg F
